| Конфигурация аппаратного ядра |
| Процессор |
Intel x86 processor, optional
Intel CORE i7-6822EQ (NewPre3000-P322-M4-D1-G0)
Intel ATOM E3950 (NewPre3000-P121-M3-D1-G0) |
| RAM |
8GB, DDR3L 1866 MHz (NewPre3000-P121-M3-D1-G0)
16GB, DDR4 2113 MHz (NewPre3000-P322-M4-D1-G0) |
| Память |
256GB, SSD |
| Интерфейсы |
| Display interface |
1 x HDMI |
| USB |
2 x USB2.0, 2 x USB3.0 |
| Debug port |
1 x RS232, terminal interface |
| Сетевой портt (group ring network) |
2 x 100/1000BASE-T, RJ45 (NewPre3000-P322-M4-D1) |
| Сетевой порт (business) |
2 x 100/1000BASE-T, RJ45 |
| Резервный интерфейс синхронизации |
2 x 100/1000BASE-T, RJ45 |
| CAN |
1 x CAN, terminal interface (NewPre3000-P121-M3-D1) |
| Последовательный порт |
1 x RS485, terminal interface |
| Expand |
Поддерживается PCIe |
| Световая индикация |
| Элетропитание |
PWR1, PWR2 |
| Работа системы |
RUN,ERR |
| Работа Ethernet портов |
Link/ACT |
| Элетропитание |
| Входное питание |
DC 24VDC (18~36VDC) |
| Разъем питания |
Terminal interface |
| Резервирование по питанию |
stand by |
| Потребляемая мощность |
<50 Вт (NewPre3000-P322-M4-D1-G0);
<30 Вт (NewPre3000-P121-M3-D1-G0); |
| Физические параметры |
| Матариал корпуса |
Аллюминий |
| Клвсс защиты |
IP30 |

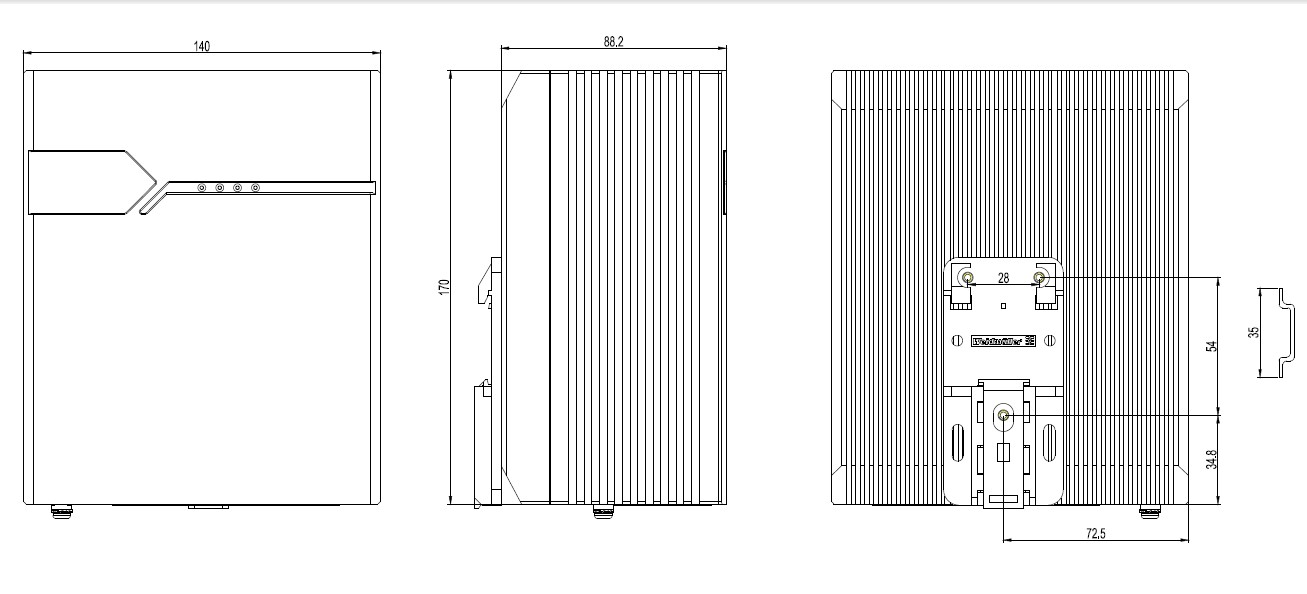

| Размеры |
140 мм x 170 мм x 88 мм (Ш x В x Г) (NewPre3000-P322-M4-D1-G0);
140 мм x 170 мм x 80 мм (Ш x В x Г) (NewPre3000-P121-M3-D1-G0); |
| Ощий вес |
2.2 кг |
| Метод установки |
на DIN-рейку |
| surroundings |
| Operating temperature |
-20~60℃ (NewPre3000-P322-M4-D1-G0);
-20~75℃ (NewPre3000-P121-M3-D1-G0); |
| storage temperature |
-40~85℃ |
| Heat dissipation |
Fanless |
| Industry Standard |
| EMI |
FCC CFR47 Part 15, EN55022/CISPR22, Class A |
| EMS |
IEC61000-4-2 (ESD), Air: ±8KV; Contact: ±6kV
IEC61000-4-3 (RS), 10V/m(80MHz～2GHz)
IEC61000-4-4 (EFT), DC Power Port: ±2kV ,Singal Port: ±2kV
IEC61000-4-5 (Surge), Power Port: ±1kV/DM, ±2kV/CM, Singal Port: ±1kV (line to line), Singal Port: ±2kV (line to earth)
IEC 61000-4-6 (CS), Signal ports: 0.15-80MHz at 10V/m, Power ports: 0.15-80MHz at 10V/m |
| mechanical |
IEC 60068-2-6 (vibration)
IEC 60068-2-27 (shock)
IEC 60068-2-32 (free fall) |
| Software specifications |
| operating system |
Intewell operating system is
pre-installed with independent Intewell operating system
Support 20 software-defined high real-time control kernels, event response time 2us, shortest cycle calculation cycle 50us
Support up to 10 real-time control kernels to share a CPU physical core
Support real-time control kernel and desktop system Inter-memory isolation and hard disk resource isolation
Provides internal virtual channels for real-time control of communication between the kernel and desktop systems.
Supports full lifecycle management of virtual machines, including creation, configuration, deployment, destruction, power-on and restart, hibernation, and suspension , Restore, rebuild and other operations
support mainstream Windows/Linux desktop systems |
| control function |
-Industrial control programming platform Pre-installed industrial control programming platform MaVIEW
supports IEC61131-3 programming languages ST, LD, FBD
support high-level languages such as C++, Matlab/Simulink
unified control programming platform, including virtualization configuration, algorithm configuration, KySCADA configuration -Industrial
Internet man-machine monitoring platform
pre-installed Industrial Internet man-machine monitoring platform KySCADA
includes IOServer, real-time database, on-site operator station, Web HMI, engineer station (integrated by MaVIEW) |
| Motion control support |
Supports up to 14-axis interpolation motion.
Supports a variety of servo and stepper motor control. Standard EtherCAT servos, such as Panasonic MINAS A6B series, Hechuan X3T series; pulse-type servos, such as Sanyo RS2A series; support CANOpen and Modbus TCP/RTU protocol stepping motor products
Support coordinated control with third parties such as ABB and Daye industrial robots |
| Communication function |
- protocol gateway software
KyGate
- support for the protocol under
support Modbus RTU protocol, Modbus TCP protocol
support electricity Statute IEC60870-5-101, IEC60870-5-104
support EtherCAT
support CANOpen
support Ethernet / IP
support Profinet
driver support user-defined, Programmable
-the upper protocol support
supports the MQTT protocol, which can seamlessly connect to mainstream MQTT platforms or MQTT servers such as Dongtu AHM Cloud and Ali Cloud. |
