| Redundancy Time Source |
PTD-10 Time Distributor can solve time redundancy input and install it before IED to verify input signal and select the best one as time source |
| Physical Media Converter |
PTD-10 Time Distributor can provide TTL and Fiber Optical interface converter. |
| Port Capacity Expansion |
PTD-10 Time Distributor can provide a flexible solution to expand more ports to connect more IEDs. |
| Long Distance Transmission |
PTD-10 Time Distributor can be installed the middle of time server and IED to provide long distance signal transmission. |
| Time Input |
Support maximum 2 input ports
BNC Interface, optional optical fiber MM interface |
| Time Output |
Support maximum 16 output ports
Terminal Interface, optional optical fiber MM interface |
| Input Interface |
TTL: 5VDC, 50Ω, BNC connector
Optical (Optional): Multi-mode, 850nm or 1310nm, ST connector |
| Output Interface |
TTL: Terminal connector
Optical (Optional): Multi-mode, 850nm or 1310nm, ST connector |
| Display Operation Interface |
LCD: 2*24 Characters, show status and make configuration
Key: 4 keys to indicate Up, Down, Enter, Esc |
| LED |
Power status: PSW
Alarm status: ALARM
Time input #1: S1
Time input #2: S2
Running status: RUN |
| Alarm Interface |
Relay: NC and NO relay alarm contact, 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC Max, 3 A Max |
| Maintenance Interface |
Console: RS232, RJ45, one port |
| Power Requirements |
Power input:
100-240VAC,50/60Hz;110-220VDC(85-264VAC/85-300VDC)
24VDC(21.6-26.4VDC)
48VDC(43.2-52.8VDC)
Power terminal: 3-pin 7.62 mm-spacing plug-in terminal block
Power Consumption: <18W |
| Physical Characteristics |
Housing: Metal
Cooling: Natural cooling, fanless

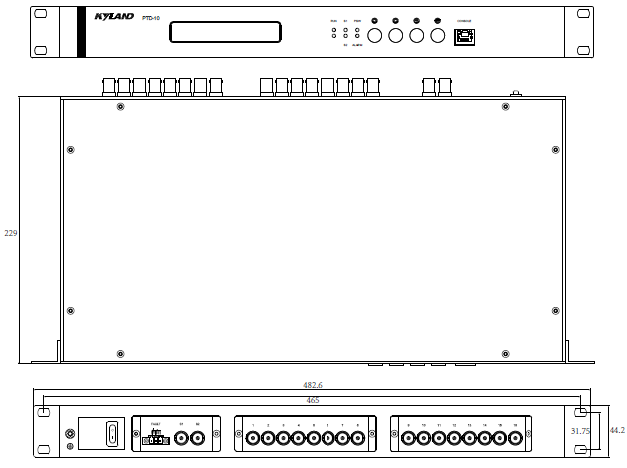

Dimensions(WxHxD): 482.6mm×44.2mm×229mm (19×1.74×9.02 in.)
Weight: <3Kg (6.61pound) |
| Environmental limits |
Operating temperature: -20°C to +70°C (-4°F to 158°F)
Storage temperature: -40°C to +85°C (-40°F to 185°F)
Ambient Relative Humidity: 5% to 95% (non-condensing) |
| Quality assurance |
Warranty: 5 years |
| Approvals |
|
| Time Accuracy |
±50ns (Input to Output) |
| IRIG-B Demodulated Signal |
B000,B001,B002,B003,B004,B005,B006,B007 |
